◎Performance description

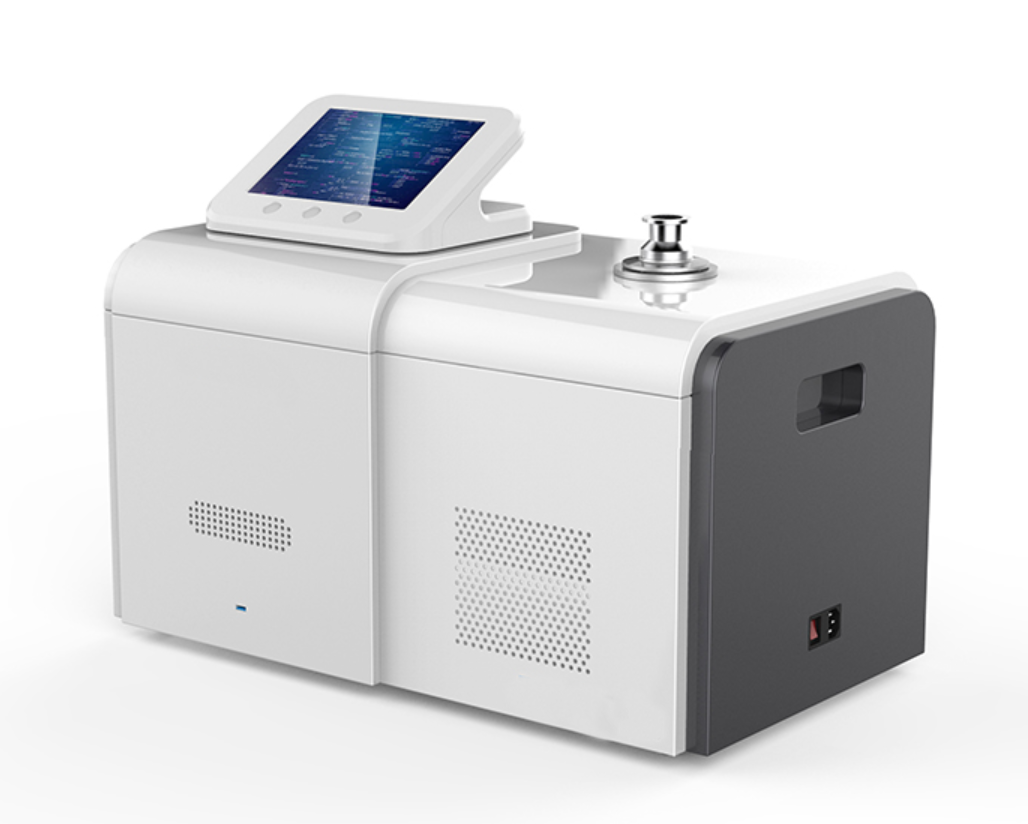

LDS-600 series leak detector is a fully automatic portable helium mass spectrum leak detector, small volume, suitable for precision, fast and portable vacuum industry and research institutes.
Using helium mass spectrometry and inverse diffusion principle, using 180° inhomogeneous magnetic field and automatic control technology. Automatic helium peak scanning, automatic calibration and automatic range switching are realized.
It has the characteristics of portable, fast start, fast operation, high sensitivity, accuratcy and rapid.
◎Simple operation
Stripping metal button, one-click automatic emptying.
Handheld remote control unit, up to 150 meters remote detection.
Ram wifi connection, noi tech app, remote control.
Automatic zero-adjusting, automatic range switching.
The custom software of the leak detector can be compiled according to the customer's request.
PRODUCT DESCRIPTION
| Minimum Leak Detection Rate :(Vacuum mode) | 3×10-13Pa·m3/s |
| Minimum Leak Detection Rate(Suction gun mode) | 5×10-9Pa·m3/s |
| Display range | 1×10-1 - 1×10-13Pa·m3/s |
| Start Time | ≤100S |
| Response time | ≤0.3s |
| Max pressure of Leak detection port: | 2000 Pa |
| Leak detection port size | DN 25 ISO-KF |
| Communication interface | One RS232 / 485 interface,One RS232 interface with 5V power supply,One way USB interface |
| Input / output interface | 8-channel digital switching value input interface8-channel digital switching output interface2-way isolated analog output interface |
| Leak detection mode | Vacuum Mode/ Suction gun Mode |
| Display unit | Mbar·l/s； pa·m3/s；atm·cc/s； ppm |
| Overall dimensions | 620X370X480mm |
| Working environment | Temp 5-40℃ |
| Weight | N. W.: 70KGS G.W.: 75KGSVolume: 0.7CBM |
| LDS600 Leak Detector 1Unit | ||
| Power supply | 220V/50Hz/1Phase/ AC | |
| Molecular Pump | Leybold Turbovac90 or Pfeiffer 80 | 1Unit |
| Mechanical Pump | Japan ULVAC /Model: GHD-031B | 1Unit |
| Solenoid Valve | Germany Burkert（00299211） | 5pcs |
| Vacuum Gauge | Germany INFICON/ Model:PSG500（PSG500） | 1Unit |
| Amplifier | American brand （AD） | 1Pc |
| Standard leak | Built-in test leak | 1Pc |
| 7-inch LCD | LCD touch screen, 360 ° rotation | 1Pc |
| Lon Source | Iridium wire ion source | 1Pc |
| Mass spectrometry room | National Defense Science, technology and industry vacuum primary metering station | 1Pc |
| Standard leak | National Defense Science, technology and industry vacuum primary metering station( with certificate) | / |
| Air Bag | Standard | 1PC |
| Spray Gun | Standard | 1PC |
| KF Flange KF25 | KF25 | 2Sets |
| Wire | 1.8meter/ 1meter | 1Pc for each |
| Fuse | 10A/16A | 2Pcs for each |
| FOB Shanghai USD Price | USD17,800.00/Unit. Warranty is for One year periodUSD18,400.00/Unit Warranty is for two years period | |
| CIF United Arab Emirates USD Price | USD18,660.00/Unit Warranty is for One year periodUSD19,260.00/Unit Warranty is for two years period | |
| Optional parts |  Sniffer USD650/PCRemote control USD700/PC | |
