Air Cooling Diffusion Pump

>In many scientific research laboratories, high-performance and reliable vacuum acquisition equipment is the key to save working time and even the success of the experiment.

>We highly recommend this AX80 Air cooling diffusion pump .

>it can reach pump speed 80L/s, max vacuum pressure: 1.0X10^-5Pa/ 7.5X10^-5Microns /1.0X10^-7mbar

>Morever, AX80 is in small size, very easy to operate.

Inquire Now

PRODUCT DESCRIPTION

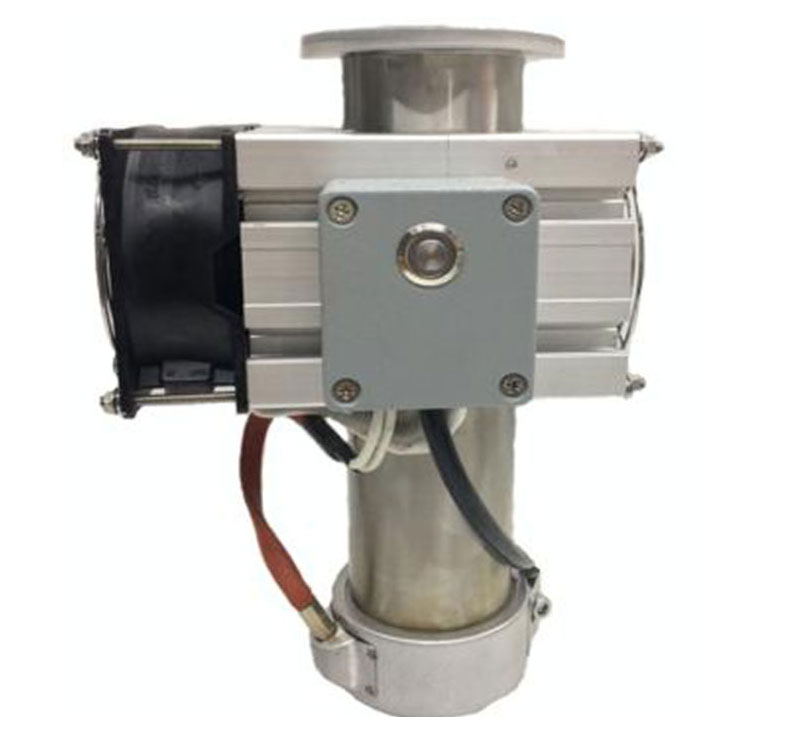

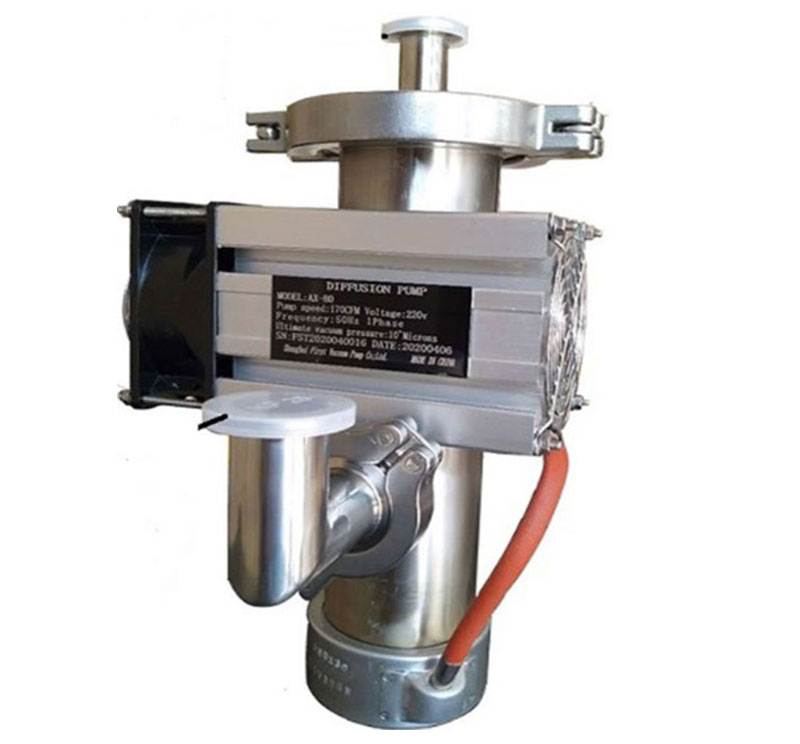

Air Cooled Diffusion Pump

Introduction:

AX80 diffusion pumps are air cooled and primary industrial standard for compact high vacuum pumping. AX80 has a high vacuum speed for all gases and the lowest cost per unit pumping speed when compared with other types of pumps used in the same vacuum range.

The pumping action commences when the vacuum pressure goes bleow 10Pa(0.1mbar/ 75Microns/ 0.075torr). On an empty, leak free system,AX80 backed by a rotary vane vacuum pump lowers the vacuum pressure to 7.5X10^-5Microns /1.0X10^-7mbar.

Applications:

High Vacuum System
Laboratory use (wiped film distillation, short path distillation)
Vacuum Coating industry

Technical Data:

Model	AX80
Pump speed	80L/s (180CFM)
Max Vacuum Pressure	1.0X10^-5Pa/ 7.5X10^-5Microns /1.0X10^-7mbar
Max pre vacuum pump pressure	10Pa/ 75Microns
Inport size	KF50 Flange port / KF25 Flange port or customized
Down port size:	KF25 Flange port (connect the backing pump)
Electricity	220V/ 50Hz/1 P or customized 120V/60Hz/ 1P
Application	High vacuum industry (Laboratory distillation, laboratory vacuum )

AX80 Diffusion Pump Includes:

Air coolied Diffusion Pump with Fan
Inlet KF65 or customized
Outlet KF25 Flange port
Internal Baffle (prevents bakstreaming)
300 watt Heater
Voltage: customized

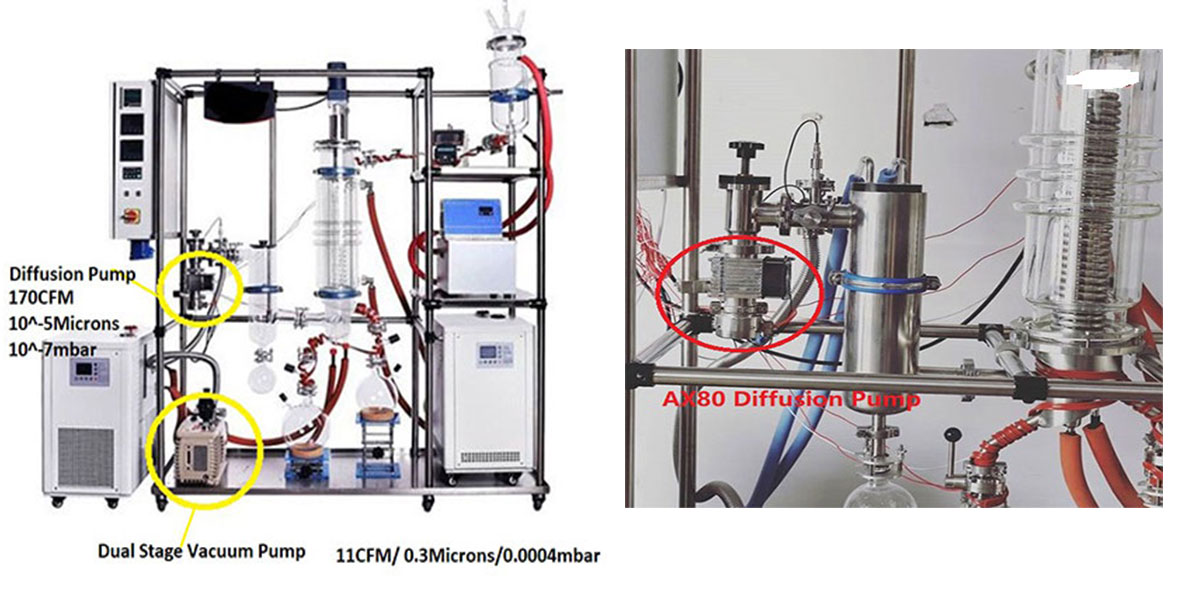

Project Case:

Air cooling diffusion pump
